Changes to EWS usage: troubleshooting error 114016

To address certain security issues, Microsoft has changed the way EWS usage is controlled in Exchange Online. For details, see this Microsoft article: The way to control EWS usage in Exchange Online is changing.

For some tenants, this change has resulted in EWS being blocked by default, causing backup failures.

Issue

Customers may encounter backup failures for Exchange users accompanied by an "HTTPClientError" (error code 114016) when SaaS Protection attempts to access Exchange Web Services (EWS).

Cause

An "HTTPClientError" (error code 114016) typically indicates that SaaS Protection was unable to access a mail site, folder, or file.

Resolution

Follow the steps below to identify and resolve the issue.

NOTE  Some steps below are run with PowerShell. Kaseya support is unable to assist with PowerShell issues and recommends reaching out to Microsoft support for further assistance if needed.

Use any of these procedures to enable EWS for your user mailboxes:

  1. Sign in to the Exchange Admin Center as an Exchange administrator.

  2. Go to Recipients > Mailboxes.

  3. Select the affected user’s mailbox.

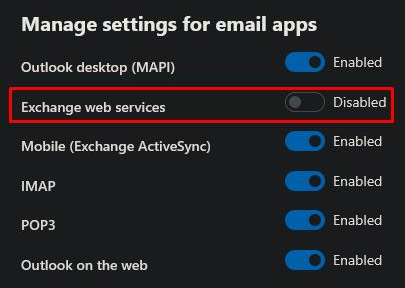

  4. In the Mailbox Details pane, under the General tab, click on Manage email apps settings.

  5. Enable Exchange web services.

  1. Launch PowerShell and issue this command to connect to the Exchange Online service:

Connect-ExchangeOnline

  1. Log in as the Global Administrator.

  2. Issue this command to enable EWS for any user mailboxes where EWS is currently disabled:

Get-CASMailbox -ResultSize Unlimited | Where-Object {$_.EwsEnabled -eq $false} |
ForEach-Object {
Set-CASMailbox $_.Identity -EwsEnabled $true
}

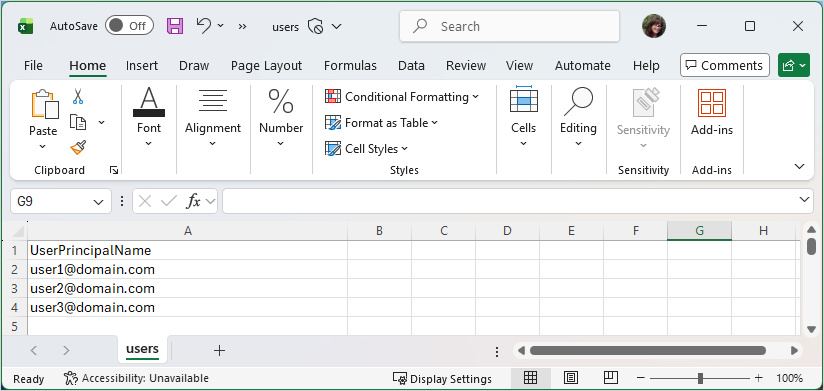

  1. Create a CSV file called users.csv, containing a list of users in a column called UserPrincipalName:

  1. Launch PowerShell and issue this command to connect to the Exchange Online service:

Connect-ExchangeOnline

  1. Log in as the Global Administrator.

  2. Issue this command to enable EWS for the users listed in your CSV file:

Import-Csv users.csv |
ForEach-Object {
Set-CASMailbox $_.UserPrincipalName -EwsEnabled $true
}

  1. Launch PowerShell and issue this command to connect to the Exchange Online service:

Connect-ExchangeOnline

  1. Log in as the Global Administrator.

  2. Issue this command to check whether EWS is enabled for the tenant:

Get-OrganizationConfig | Select EwsEnabled

  1. If EWS is not enabled, issue this command to enable it:

Set-OrganizationConfig -EwsEnabled $true

In Exchange Online PowerShell, issue this command:

Get-OrganizationConfig | Select EwsApplicationAccessPolicy, EwsAllowList, EwsBlockList

If the policy is set to EnforceAllowList, ensure the backup application is included in the EwsAllowList.

In Exchange Online PowerShell, issue this command to check whether mailbox-level policies are overriding tenant-wide settings:

Get-CASMailbox user@domain.com | Select EwsApplicationAccessPolicy

Adjust any mailbox-level policies as required.

  1. In Microsoft Entra Admin Center, navigate to Security > Conditional Access.

  2. Ensure that there are no policies blocking the following:

  • Legacy authentication

  • Exchange Web Services (EWS)

  • Specific users or groups

  1. In Microsoft Entra Admin Center, navigate to Monitoring > Sign-in logs.

  2. Filter logs for the affected user and check for failed sign-ins.

  3. Look for HTTP client errors and access blocked by conditional access policies.

  4. Address any issues found.

In Microsoft Entra Admin Center, navigate to Properties > Manage Security Defaults.

If enabled, security defaults may block legacy authentication used by EWS. Disable any security defaults as required.
